HC

HC

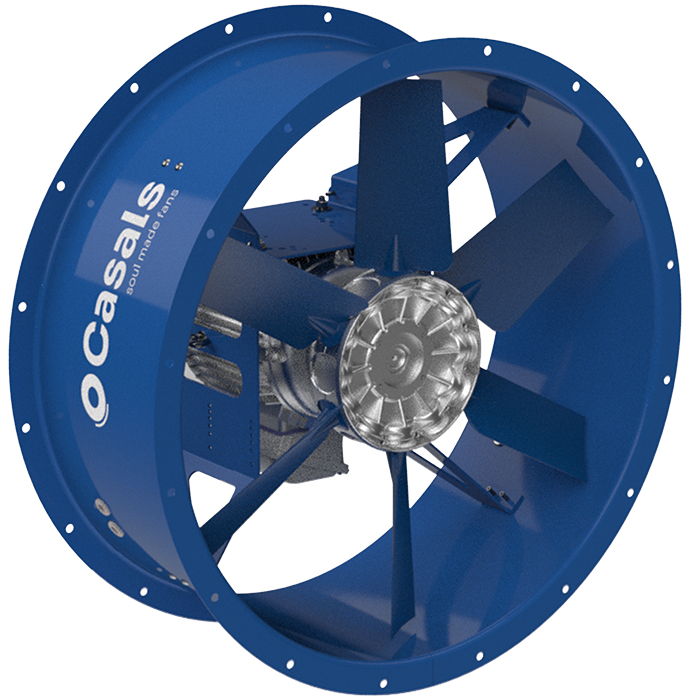

SHORT CASE VARIABLE PITCH BLADES FAN

MANUFACTURING FEATURES:
• Plate axial fan with circular reinforced frame.
• Motor-impeller modular assembly for complete versatility.
• Polyester powder finishing coat.
• Standard asynchronous squirrel-cage motor with IP-55 protection and Class F insulation. Manufactured with standard voltages: 230V 60Hz in single phase motors and 230/400V 60Hz in three phase motors up to 4kW and 400/690V 60Hz for higher powers.
• HC: Polypropylene impeller (A2 profile) or polyamide impeller reinforced with fibreglass (other profiles) with variable pitch angle.
• HCA: Cast aluminum impeller with variable pitch angle.

APPLICATIONS:
Designed for wall or duct installation, they are suitable for:
• Air renewal in buildings and industries.
• Smoke exhaust (maximum 50-60ºC).
• Maximum working temperature: 50ºC single phase, 60ºC three phase.

UNDER REQUEST:
• Supply impeller (air direction from impeller to motor), 100% reversible impeller.
• 50Hz fans and special voltages.
• Hot-dipped galvanized or stainless steel housing.
• Optional can be adapted an square plate to the frame, to transform it in an axial square frame version fan.

Code Name
HC 35 M4 (A0:6)
HC 35 T4 (A0:6)
HC 40 M4 (A0:6)
HC 40 T4 (A0:6)
HC 40 T6 (A0:6)
HC 45 M4 (A0:6)
HC 45 T4 (A0:6)
HC 45 T6 (A0:6)
HC 50 M4 (A0:6)
HC 50 T4 (A0:6)
HC 50 T6 (A0:6)
HC 56 M4 (A2:6)
HC 56 M4 (A2:9)
HC 56 M4 (A5:6)
HC 56 T4 (A2:6)
HC 56 T4 (A2:9)
HC 56 T4 (A5:6)
HC 56 T6 (A2:6)
HC 56 T6 (A2:9)
HC 56 T6 (A5:6)
HC 63 T4 (A2:6)
HC 63 T4 (A2:9)
HC 63 T4 (A5:6)
HC 63 T6 (A2:6)
HC 63 T6 (A2:9)
HC 63 T6 (A5:6)
HC 71 T4 (A2:6)
HC 71 T4 (A2:9)
HC 71 T4 (A5:6)
HC 71 T6 (A2:6)
HC 71 T6 (A2:9)
HC 71 T6 (A5:6)
HC 80 T4 (A2:6)
HC 80 T4 (A2:9)
HC 80 T4 (A5:6)
HC 80 T6 (A2:6)
HC 80 T6 (A2:9)
HC 80 T6 (A5:6)
HC 90 T4 (A6:3)
HC 90 T4 (A6:6)
HC 90 T6 (A6:3)
HC 90 T6 (A6:6)
HC 100 T4 (A6:3)
HC 100 T4 (A6:6)
HC 100 T6 (A6:3)
HC 100 T6 (A6:6)
HC 112 T4 (A6:3)
HC 112 T4 (A6:6)
HC 112 T6 (A6:3)
HC 112 T6 (A6:6)
HC 125 T4 (A7:4)
HC 125 T4 (A7:8)
HC 125 T6 (A7:4)
HC 125 T6 (A7:8)
