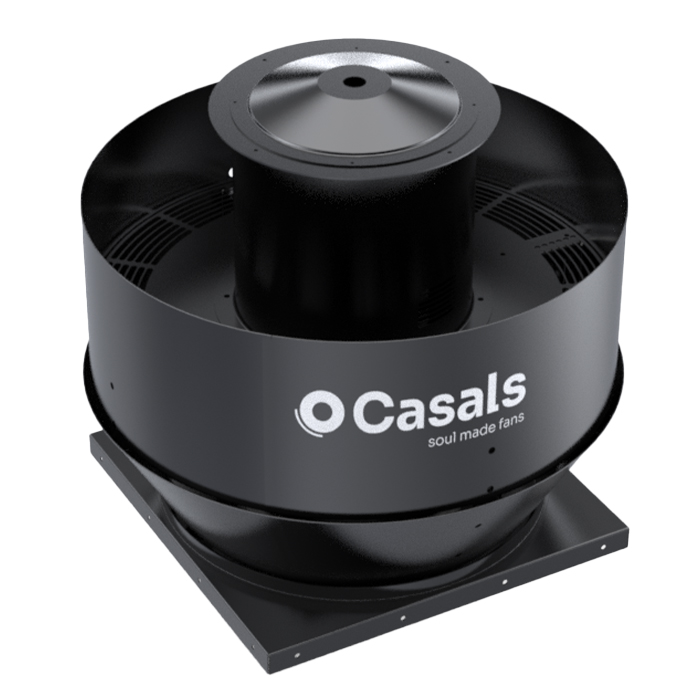

CTH4

CTH4

ROOF FAN, VERTICAL DISCHARGE

MANUFACTURING FEATURES
• Fan made of steel with polyester powder finishing coat.
• High efficiency backward impeller with self-cleaning system of steel.
• Standard asynchronous motor with IP-55 protection and Class F insulation. Manufactured with standard voltages: 400-460V60Hz three phase motors

APPLICATIONS

Specially designed for roof installation, with vertical discharge without any addicional kit, they are suitable for:

• Smoke extraction
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods.
• Maximum continuous operation temperature: 80ºC (fluide).
• Maximum ambient temperature: 50ºC.
• Cinemas.





UNDER REQUEST

• Version made of inox 304/316.
• Finishing C4-C5.
• Special voltages.



Code Name
278500206 CTH4 500 T4 3kW
278710206 CTH4 710 T6 4kW
278400206 CTH4 400 T4 1,1kW
278450206 CTH4 450 T4 2,2kW
278570206 CTH4 560 T6 1,1kW
278630206 CTH4 630 T6 2,2kW
278310206 CTH4 315 T4 0,25kW
278350206 CTH4 355 T4 0,55kW
278410206 CTH4 400 T6 0,37kW
278460206 CTH4 450 T6 0,75kW
278510206 CTH4 500 T6 0,75kW
