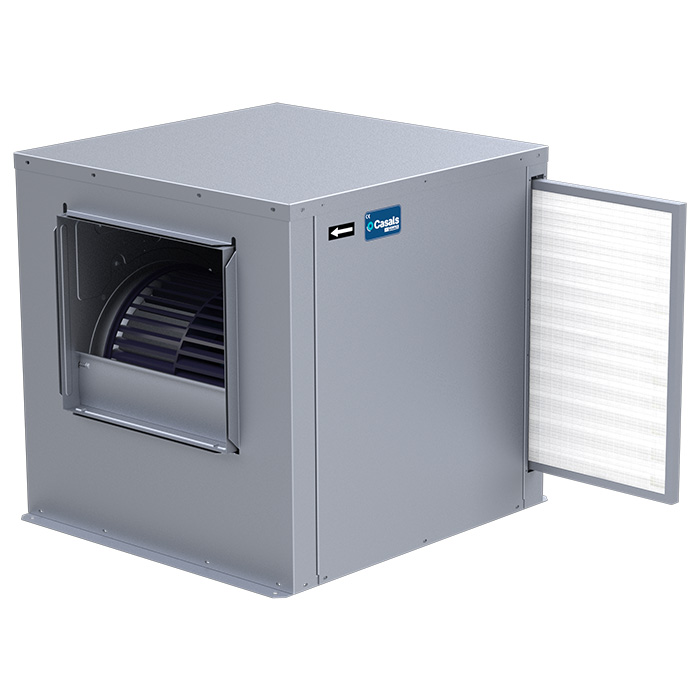

BOX BD FILTER

BOX BD FILTER

CENTRIFUGAL IN SOUNDPROOF CABINET WITH FILTER

MANUFACTURING FEATURES:

• Impellers made of polyamide reinforced with fiberglass .
•BD range fans assembled in soundproof cabinets with thermo-acoustic insulation, Bs1d0 fire class on the supply panel.
• Fan assembled on antivibration mountings.
• Connection gland included.
• Casals exclusive design closed motors with extruded aluminum housing, which make the whole set of connections protected inside the terminal box integrated in the motor with IP-65 protection. Motor with IP-54 protection and class F insulation. Standard voltages 230V Hz for single phase motors.
• Box with particle filter MERV6 (G4) integrated. Removable filter holder frame from both sides of the box for maintenance. Washable and replaceable filter media. Optimized air intake to maximize performance.


APPLICATIONS:

Designed for inline installation, indoor or outdoor assembly, they are suitable for:
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods. Use in supply or extraction with prior fat filtering.
• Maximum working temperature: 50ºC.

UNDER REQUEST:

• Impellers made of galvanised steel sheet.

(*) The data shown correspond to measurements made without the filters installed.

Code Name
251100351STC6 BOX BD FILTER 7/7 M4 0,2kW
251160351STC6 BOX BD FILTER 7/7 M6 0,07kW
251220351STC6 BOX BD FILTER 9/9 M4 0,60kW
251280351STC6 BOX BD FILTER 9/9 M6 0,20kW
251370351STC6 BOX BD FILTER 10/10 M6 0,37kW
251520351STC6 BOX BD FILTER 12/12 M6 1,36kW
