BOX BD

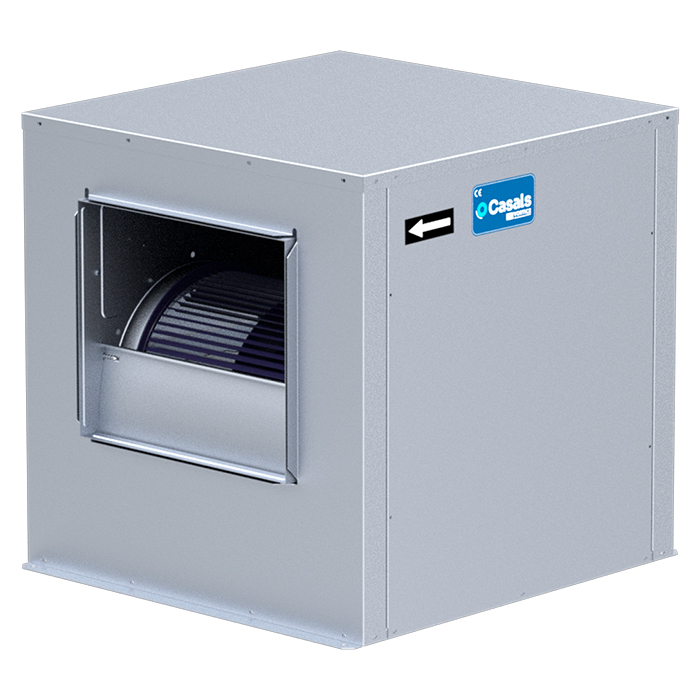

BOX BD

CENTRIFUGAL IN SOUNDPROOF CABINET

MANUFACTURING FEATURES:

• Impellers made of polyamide reinforced with fiberglass.
•BD range fans assembled in soundproof cabinets with thermo-acoustic insulation, Bs1d0 fire class on the supply pannel.
• Fan assembled on antivibration mountings.
• Connection gland included.
• Closed motors specially designed by Casals with extruded aluminum housing, which make the whole connection is protected within the integrated terminal box on the motor IP 65 protection and motor with IP54 protection and Class F insulation standard voltages: 230V 60Hz  in single phase

APPLICATIONS:

Designed for inline installation, indoor or outdoor assembly, they are suitable for:
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods. Use in supply or extraction with prior fat filtering.
• Maximum working temperature: 50ºC.

UNDER REQUEST:

• LG0 position.
• Impellers made of galvanised steel sheet.

Code Name
251100551M043 BOX BD 7/7 M4 0,2kW
251160551M043 BOX BD 7/7 M6 0,07kW
251220551M043 BOX BD 9/9 M4 0,60kW
251280551M043 BOX BD 9/9 M6 0,20kW
251370551M043 BOX BD 10/10 M6 0,37kW
251520551M043 BOX BD 12/12 M6 1,36kW
