60 Hz

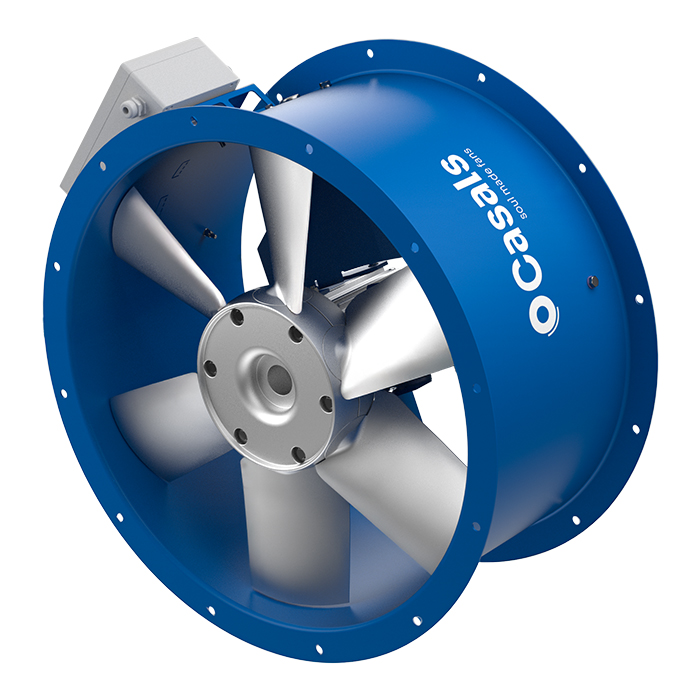

SHORT CASE VARIABLE PITCH BLADES WITH EEC MOTOR
MANUFACTURING FEATURES
• Short case axial fan with reinforced body, with double flange, made of rolling steel sheet.
• Pad mounted motor support system with guide vanes.
• Polyester powder finishing coat.
• Low sound level and high performance.
• PM brushless motor (permanent magnets), synchronous, electronically commutated, high efficiency and low sound level. Specially designed for fans with electronic operation and control in deported box IP65.
Working range: from 400 to 1200-2000rpm (depending on the models)
Motor with IP54 protection and class F insulation. IP 65 drive case
Power: 220V ± 10% single phase
Power frequency: 50 / 60Hz
Operating temperature range (electronical box): -20ºC to 50ºC
Speed control through signal 0-10V or PWM
Cast aluminium impeller with variable pich angle (Stopped and in origin).
APPLICATIONS
Designed for inline installation, they are suitable for
• Air renewal in buildings and industries.
• Smoke extraction.
• Maximum transported air temperature: 50ºC.
UNDER REQUEST
• Casing in hot galvanized sheet or stainless steel.
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| 600 | 560 | 504 | 12x30 | 12 | 350 | 675 |
MANUFACTURING FEATURES
• Safety start-stop switches according to IEC 60947-1 and IEC 60947-3.
• IP65 and always equipped an auxiliary contact.
• Useful for switching off the current before handling the fan.
*Máx. thermal current air (A)
CONSTRUCTION FEATURES
• Protective grille on the motor and propeller side to prevent objects from entering. For HC and HCA models, the RP grille is only applicable on the propeller side. The RP is also suitable for the HMR EVO range, both for intake and discharge (note that the grille is of different sizes depending on whether it is for intake or discharge)
• Constructed with electro-welded rod.
• Compliant with ROHS directive 2002/95/EC.
ON REQUEST
• Grille in 304 or 316 stainless steel with electropolished finish.
MANUFACTURING FEATURES
• Speed remote controller for EEC motors.
• Adjusts the flow rate in a range from 0 to 100% at a maximum distance of 10m.
• It can be recessed or mounted on a wall. Can be installed outdoors.
• Working temperature from 0 to 40ºC.
Set that allows to install short or long case fans on the roof protecting them from inclement weather. Kit not suitable for fire (fiber cowl -20+110ºC).
MANUFACTURING FEATURES
Set consisting of:
• Cowl made of reinforced glass fiber protection cowl.
• Support framework for roof adaptation in laminated steel sheet protected against corrosion by powder coating polyester resin.
• Anti-bird protection grid protected against corrosion.
APPLICATIONS
Designed for roof installation, they are indicated for:
• Renovation of air in all types of buildings and industries.
• Smoke extraction.
• Contribution of clean air.
• Maximum temperature subject to installed fan.
The kit musn't be installed if the air speed is higher than 13m/s
UNDER REQUEST
• Framework support in AISI 304,316.
• Cold galvanized steel.
• Hot galvanized steel.
Set that allows to install short or long case fans on the roof protecting them from inclement weather. Kit suitable for fire (metal cap).
MANUFACTURING FEATURES
Set consisting of:
•Cowl made of galvanized sheet.
• Support framework for roof adaptation in laminated steel sheet protected against corrosion by powder coating polyester resin.
• Anti-bird protection grid protected against corrosion.
APPLICATIONS
Designed for roof installation, they are indicated for:
• Renovation of air in all types of buildings and industries.
• Smoke extraction.
• Contribution of clean air.
• Maximum temperature subject to installed fan.
UNDER REQUEST
• Framework support in AISI 304,316.
• Cold galvanized steel.
• Hot galvanized steel.
| Nº | Code | Family | Name | Qty |
|---|---|---|---|---|
| 1 | R-720331075IEC4V2 | MOTOR | EEC 750W (T.80) | x1 |
| 2 | R-H50006240AIMP | IMPELLER | 500:AA0:6 G40 D14 IMP | x1 |
| 3 | 301002104R150 | ELECTRONICAL DEVICE | EEC750 1500RPM | x1 |
+34 972 720 150
Datasheet
