KENTALROOF CONFORT

KENTALROOF CONFORT

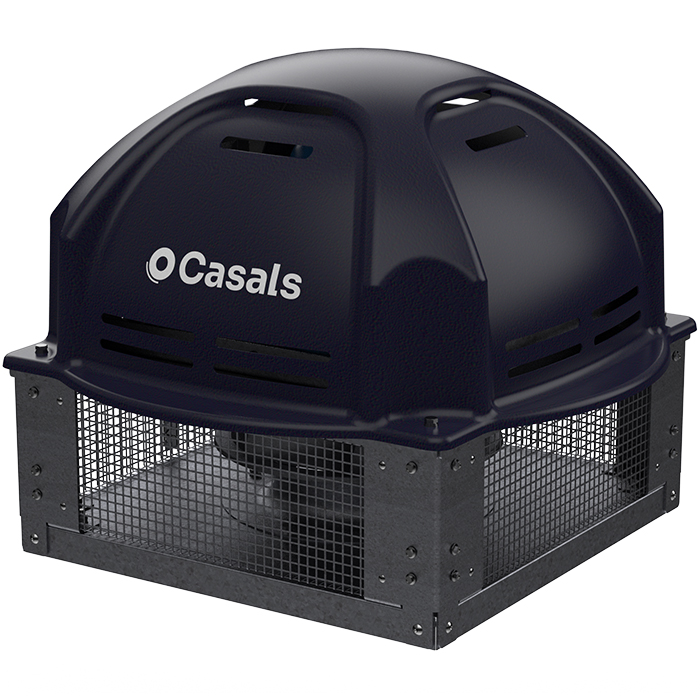

ROOF FAN WITH HINGED SYSTEM AND ABS COWL

MANUFACTURING FEATURES:

  • ABS protection cowl easily removable for access to motor and impeller thanks to the integrated folding system. The ABS cowl is characterized by its toughness, resistance to impacts and is able to withstand extreme ambient temperatures. 100% of the ABS used in the this cowl is recycled.
  • The design of the cowl with a rounded shape is specific to minimize the risk of water ingress due to rain.
  • Equipped with a hinged system to open the motor-impeller set. This system allows easy maintenance and cleaning of the set without the need to disassemble the entire structure. The opening is possible in 2 inclinations: approximately 45º and 90º, as required by the intervention.
  • Structure in anticorrosive galvanized steel and support frame for adaptation to the roof with anti-bird protection grid.
  • High-performance, backward-curved blade (reaction) impellers designed to work without scroll. Self-cleaning system, built in galvanized steel treated with anti-corrosion.
  • Standard asynchronous squirrel cage motor with IP-55 protection and Class F insulation. Standard voltages of 230V50Hz for single phase motors and for single phase motors, 230/400V50Hz & 400/690V 50Hz for three-phase 1 speed motors and 400V50Hz for 2 speed motors.

APPLICATIONS

Designed for deck or roof mounting, they are indicated for:

  • Smoke extraction.
  • Air renewal in all types of buildings and industries.
  • Maximum continuous working temperature: transported air 80ºC, ambient 60ºC to -25ºC in three-phase motors.

UNDER REQUEST

  • Special voltages.
Code Name
279564100PA KENTALROOF CONFORT 560 T4 3kW
27931290PA KENTALROOF CONFORT 315 T2 1,5kW
27945490PA KENTALROOF CONFORT 450 T4 1,1kW
27950491PA KENTALROOF CONFORT 500 T4 1,5kW
27956690PA KENTALROOF CONFORT 560 T6 1,1kW
279634132PA KENTALROOF CONFORT 630 T4 5,5kW
279634100PA KENTALROOF CONFORT 630 T6 1,5kW
27931471PAM KENTALROOF CONFORT 315 M4 0,25kW
27931471PA KENTALROOF CONFORT 315 T4 0,25kW
27935471PAM KENTALROOF CONFORT 355 M4 0,25kW
27935471PA KENTALROOF CONFORT 355 T4 0,25kW
27940480PAM KENTALROOF CONFORT 400 M4 0,55kW
27940480PA KENTALROOF CONFORT 400 T4 0,55kW
27950680PA KENTALROOF CONFORT 500 T6 0,55kW
279564100PA2V KENTALROOF CONFORT 560 T4/T8 3/0,55kW
279634132PA2V KENTALROOF CONFORT 630 T4/T8 5,5/1,1kW
27945490PA2V KENTALROOF CONFORT 450 T4/T8 1,1/0,18kW
27950491PA2V KENTALROOF CONFORT 500 T4/T8 1,5/0,25kW
27931471PA2V KENTALROOF CONFORT 315 T4/T8 0,25/0,03kW
27935471PA2V KENTALROOF CONFORT 355 T4/T8 0,25/0,03kW
27940480PA2V KENTALROOF CONFORT 400 T4/T8 0,75/0,12kW
