JFC CORE CONFORT

JFC CORE CONFORT

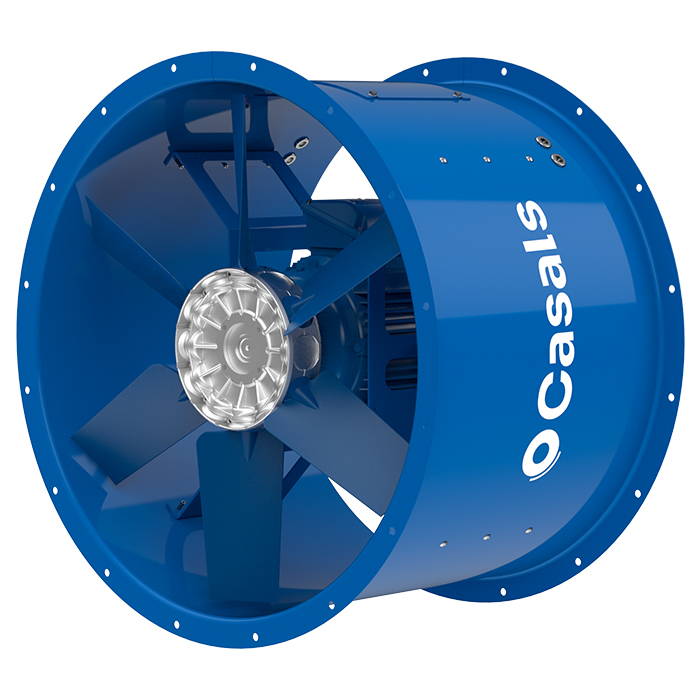

LONG CASE CONFORT AXIAL FAN

MANUFACTURING FEATURES:

• Long case axial fan with reinforced body.
• Modular motor-impeller assembly. Polyamide impeller with variable pitch angle. Polyester powder finishing coat.
• Housing with motor access door for easy connection.
• Standard asynchronous squirrel-cage motor with IP-55 protection and Class F. Manufactured with standard voltages: 230/400V 50Hz) for 1 speed motors and 400V 50Hz for 2 speed motors.

APPLICATIONS:

Designed for inline installation, they are suitable for:
• Smoke emergency exhaust with motor inside the hazardous area.
• Maximum working temperature: 60ºC.

UNDER REQUEST:

• Supply impeller (air direction from impeller to motor).
• 100% reversible impeller.
• Cast aluminium impeller

Code Name
274300188ST JFC CORE 315 T2 UN CONFORT
274350188ST JFC CORE 355 T2 UN CONFORT
274400188ST JFC CORE 400 T2 UN CONFORT
274310188ST JFC CORE 315/H T2 UN CONFORT
274360188ST JFC CORE 355/H T2 UN CONFORT
274410188ST JFC CORE 400/H T2 UN CONFORT
274300288ST JFC CORE 315 T2/T4 UN CONFORT
274350288ST JFC CORE 355 T2/T4 UN CONFORT
274400288ST JFC CORE 400 T2/T4 UN CONFORT
274310288ST JFC CORE 315/H T2/T4 UN CONFORT
274360288ST JFC CORE 355/H T2/T4 UN CONFORT
274410288ST JFC CORE 400/H T2/T4 UN CONFORT
