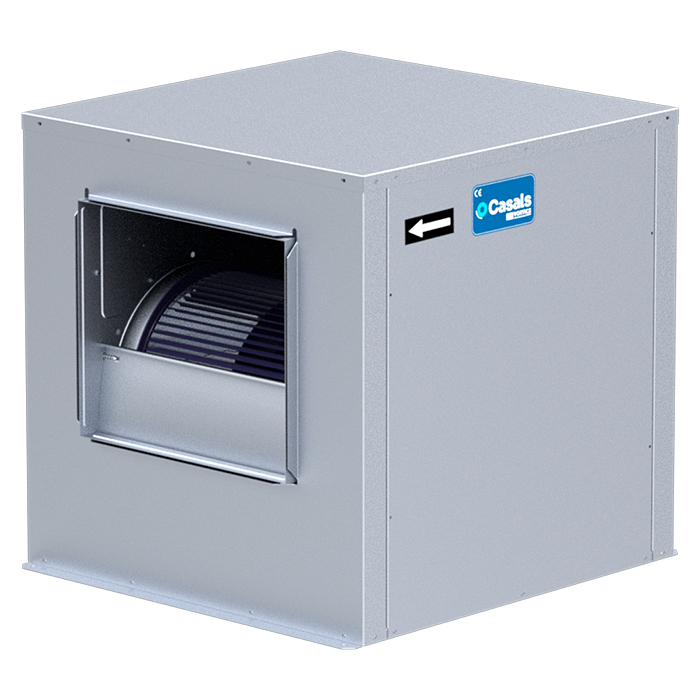

BOX BD 3V

BOX BD 3V

CENTRIFUGAL IN SOUNDPROOF CABINET, 3SPEED MOTOR

MANUFACTURING FEATURES:

• Impellers made of polyamide reinforced with fiberglass
•BD 3V range fans assembled in soundproof cabinets with thermo-acoustic insulation, Bs1d0 fire class.
• Fan assembled on antivibration mountings.
• Connection gland included.
•Closed 3 speed motor specially designed Casals: extruded aluminum housing, all protected inside the terminal box on the motor IP 65 protection and motor with IP54 protection and Class F insulation standard voltages: 230V 50Hz

APPLICATIONS:

Designed for inline installation, indoor or outdoor assembly, they are suitable for:
• Air renewal in buildings and industries.
• Industrial and professional kitchen hoods. Use in supply or extraction with prior fat filtering.
• Maximum working temperature: 50ºC.

UNDER REQUEST:

• LG0 position.
• Impellers made of galvanised steel sheet.

Code Name
251100550M001 BOX BD 7/7 M4 0,12kW 3V
251220550M001 BOX BD 9/9 M4 0,35kW 3V
251320550M001 BOX BD 10/10 M4 0,59kW 3V
251520550M001 BOX BD 12/12 M6 0,79kW 3V
