HM EVO 56 EEC

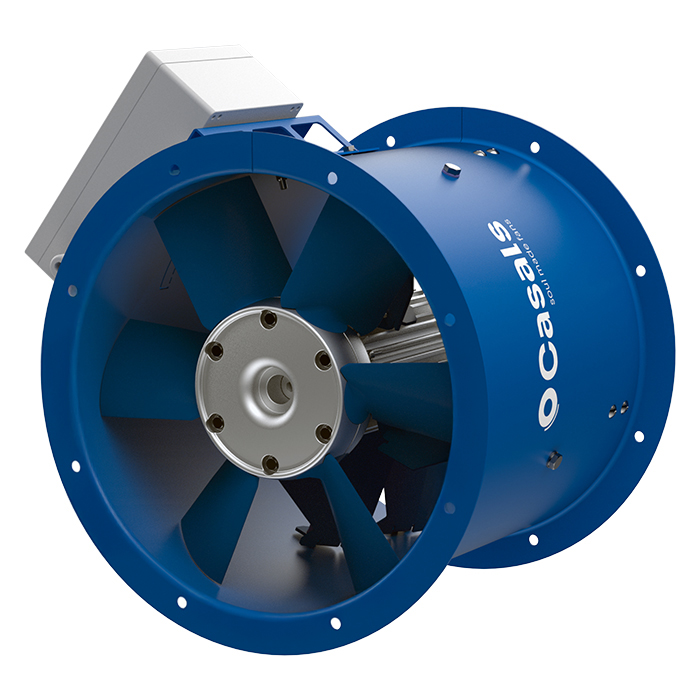

LONG CASE VARIABLE PITCH BLADES WITH EEC MOTOR

MANUFACTURING FEATURES
• Long case axial fan with reinforced body, with double flange, made of rolling steel sheet.
• Pad mounted motor support system with guide vanes.
• Polyester powder finishing coat.
• Low sound level and high performance.
• PM brushless motor (permanent magnets), synchronous, electronically commutated, high efficiency and low sound level. Specially designed for fans with electronic operation and control in deported box IP65.
    Working range: from 400 to 1200-2000rpm (depending on the models)
    Motor with IP54 protection and class F insulation. IP 65 drive case
    Power: 220V ± 10% single phase
    Power frequency: 50 / 60Hz
Operating temperature range (electronical box): -20ºC to 50ºC
    Speed control through signal 0-10V or PWM
• Polypropylene impeller with variable pich angle (Stopped and in origin).

APPLICATIONS
Designed for inline installation, they are suitable for:
• Air renewal in buildings and industries.
• Smoke extraction.
• Maximum transported air temperature: 50ºC.

UNDER REQUEST
• Casing in hot galvanized sheet or stainless steel.

Fan

Max flow

13970 m³/h

Weight

34.5 Kg

Motor

Power

1,5 kW

RPM Motor

1500

I max. 230 V

HM EVO 56 EEC

Design point

Service point

Degrees

RPM

Temp. max. (ºC)

Q (m³/h)

Ps (Pa)

Pd (Pa)

Pt (Pa)

Speed air (m/s)

Security coefficient

Mechanical total efficiency (%)

Total efficiency (%)

Pw_mec

Pw_mec (kW)

Pw_abs (kW) 1.2 Kg/m³

Pw_recom (kW)

Alternative point

HM EVO 56 EEC

A	B	C	D	E	F	G
646	620	559	12x30	12	498	727

HM EVO 56 EEC

HM EVO 56 EEC

Model

INT 25 3P A

Code

INT253PA

Information

SAFETY SWITCH

MANUFACTURING FEATURES

• Safety start-stop switches according to IEC 60947-1 and IEC 60947-3.
• IP65 and always equipped an auxiliary contact.
• Useful for switching off the current before handling the fan.

*Máx. thermal current air (A)

Model

REGC

Code

FX263300

Information

SPEED CONTROLLER FOR EEC MOTOR

MANUFACTURING FEATURES

• Speed remote controller for EEC motors.
• Adjusts the flow rate in a range from 0 to 100% at a maximum distance of 10m.
• It can be recessed or mounted on a wall. Can be installed outdoors.
• Working temperature from 0 to 40ºC.
