KIT-PE STAIRSHIELD

KIT-PE STAIRSHIELD

KIT PE STAIRSHIELD

Stairs pressurization kit to automatically control the differential pressure and maintain it at 30-50 Pa in a single stage in accordance with the UNE-EN 12101-6 standard.

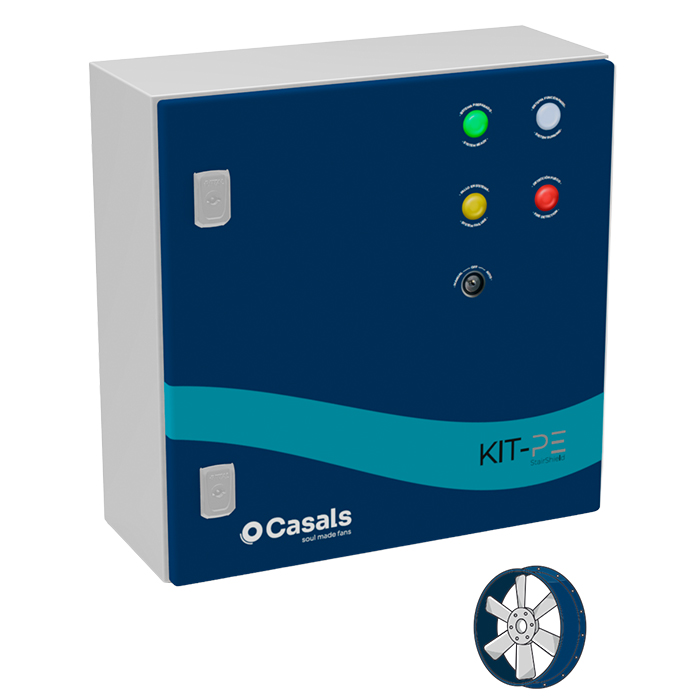

Made up of a control panel (KIT-PE STAIRSHIELD) and a drive unit (any fan for air supply) that will provide the stairs or the escape route with sufficient pressure.
Available for three-phase and single-phase equipment.
The KIT-PE STAIRSHIELD has everything necessary to function autonomously, so the installer's job will be much easier and he will only have to connect the kit to the fan and to the fire detection control panel.
KIT-PE STAIRSHIELD includes a flow sensor to redundantly ensure air circulation in the system and in the correct direction.

The KIT-PE STAIRSHIELD is composed of the following elements:

  • Variable frequency programmed to maintain constant pressure.
  • Maximum output frequency: 50Hz
  • High precision DPT differential pressure probe
  • Steel frame fitted with a 3mm double bar lock to limit external access. IP66 protection. Complies with IEC 62208, UL, CUL, BV, DNV and GL standards.
  • Magnetothermic protector.
  • Line and error led.
  • Test button.
  • Operating mode selector.

Kit according to the new regulations (1/2/24) with a fire brigade panel (COMBATOR)

It only manages a fan. A kit per ladder is required.

UNDER REQUEST
Maximum output frequency: 60Hz

Code Name
KPESSI04 KIT-PE STAIRSHIELD I 7A in: 230Vac II, out: 230Vac III
KPESSI05 KIT-PE STAIRSHIELD I 10A in: 230Vac II, out: 230Vac III
KPESSI01 KIT-PE STAIRSHIELD I 2,5A in: 230Vac II, out: 230Vac III
KPESSI03 KIT-PE STAIRSHIELD I 4,2A in: 230Vac II, out: 230Vac III
KPESSIII03 KIT-PE STAIRSHIELD III 5A in: 400Vac III, out: 400Vac III
KPESSIII04 KIT-PE STAIRSHIELD III 8A in: 400Vac III, out: 400Vac III
KPESSIII05 KIT-PE STAIRSHIELD III 12A in: 400Vac III, out: 400Vac III
KPESSIII06 KIT-PE STAIRSHIELD III 16A in: 400Vac III, out: 400Vac III
KPESSIII07 KIT-PE STAIRSHIELD III 23A in: 400Vac III, out: 400Vac III
KPESSIII09 KIT-PE STAIRSHIELD III 41A in: 400Vac III, out: 400Vac III
KPESSIII01 KIT-PE STAIRSHIELD III 2,2A in: 400Vac III, out: 400Vac III
KPESSIII02 KIT-PE STAIRSHIELD III 3,6A in: 400Vac III, out: 400Vac III
KPESSIII08 KIT-PE STAIRSHIELD III 29,5A in: 400Vac III, out: 400Vac III
